31.5 dB With 6 Bit Programmable CMOS Controlled
Attenuator, SMA Female to SMA Female, 0.5 dB
Steps Rated to 0.32 Watts Up to 13 GHz

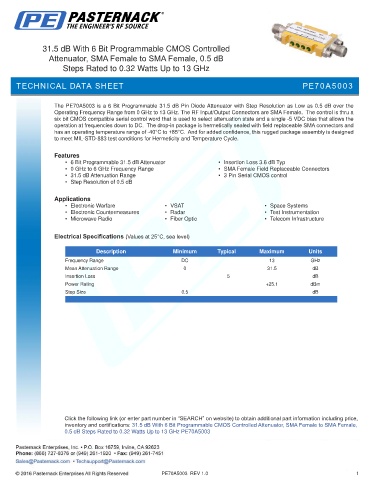

TECHNICAL DATA SHEET PE70A5003

The PE70A5003 is a 6 Bit Programmable 31.5 dB Pin Diode Attenuator with Step Resolution as Low as 0.5 dB over the
Operating Frequency Range from 0 GHz to 13 GHz. The RF Input/Output Connectors are SMA Female. The control is thru a
six bit CMOS compatible serial control word that is used to select attenuation state and a single -5 VDC bias that allows the
operation at frequencies down to DC. The drop-in package is hermetically sealed with field replaceable SMA connectors and
has an operating temperature range of -40°C to +85°C. And for added confidence, this rugged package assembly is designed
to meet MIL-STD-883 test conditions for Hermeticity and Temperature Cycle.

Features
• 6 Bit Programmable 31.5 dB Attenuator • Insertion Loss 3.6 dB Typ
• 0 GHz to 6 GHz Frequency Range • SMA Female Field Replaceable Connectors
• 31.5 dB Attenuation Range • 3 Pin Serial CMOS control
• Step Resolution of 0.5 dB

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range DC 13 GHz
Mean Attenuation Range 0 31.5 dB
Insertion Loss 5 dB
Power Rating +25.1 dBm
Step Size 0.5 dB
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable CMOS Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Rated to 0.32 Watts Up to 13 GHz PE70A5003

PE70A5003 REV 1.0 1
