31.5 dB With 6 Bit Programmable CMOS Controlled
Attenuator, SMA Female to SMA Female, 0.5 dB
Steps Rated to 0.32 Watts Up to 13 GHz

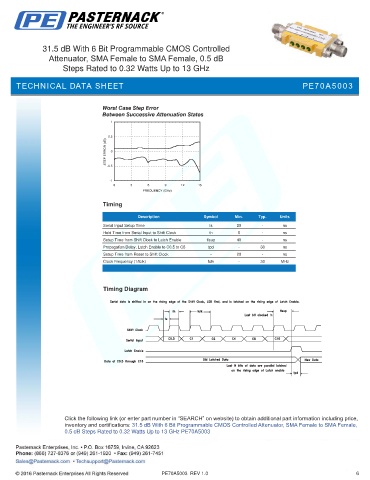

TECHNICAL DATA SHEET PE70A5003
Worst Case Step Error
Between Successive Attenuation States
1
0.5
STEP ERROR (dB) 0
-0.5
-1
0 3 6 9 12 15
FREQUENCY (GHz)
Timing
Description Symbol Min. Typ. Units
Serial Input Setup Time ts 20 - ns
Hold Time from Serial Input to Shift Clock th 0 - ns
Setup Time from Shift Clock to Latch Enable tlsup 40 - ns
Propagation Delay, Latch Enable to C0.5 to C8 tpd - 30 ns
Setup Time from Reset to Shift Clock - 20 - ns
Clock Frequency (1/tclk) fclk - 30 MHz
Timing Diagram
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable CMOS Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Rated to 0.32 Watts Up to 13 GHz PE70A5003
PE70A5003 REV 1.0 6
