Page 2844 - RF Attenuator Datasheets

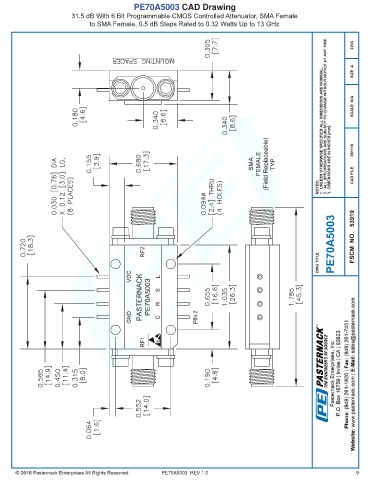

PE70A5003 CAD Drawing
31.5 dB With 6 Bit Programmable CMOS Controlled Attenuator, SMA Female
to SMA Female, 0.5 dB Steps Rated to 0.32 Watts Up to 13 GHz

PE70A5003 REV 1.0 9
