6 Bit Relay Controlled Programmable Attenuator, 31.5 dB
Up to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female

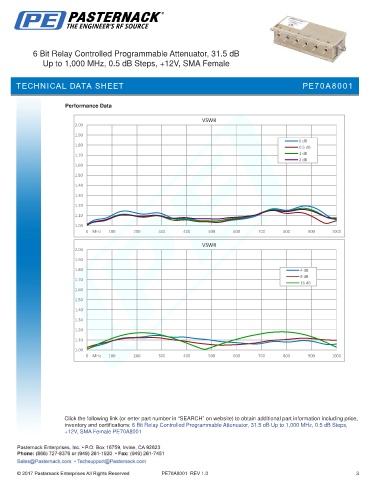

TECHNICAL DATA SHEET PE70A8001

Performance Data

VSWR
2.00
1.90
0 dB
1.80 0.5 dB
1.70 1 dB
2 dB
1.60
1.50
1.40
1.30
1.20
1.10
1.00
0 MHz 100 200 300 400 500 600 700 800 900 1000

VSWR
2.00
1.90
1.80 4 dB
8 dB
1.70
16 dB
1.60
1.50
1.40
1.30
1.20

1.10
1.00
0 MHz 100 200 300 400 500 600 700 800 900 1000

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up to 1,000 MHz, 0.5 dB Steps,
+12V, SMA Female PE70A8001

PE70A8001 REV 1.0 3
