6 Bit Relay Controlled Programmable Attenuator, 63 dB
Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female

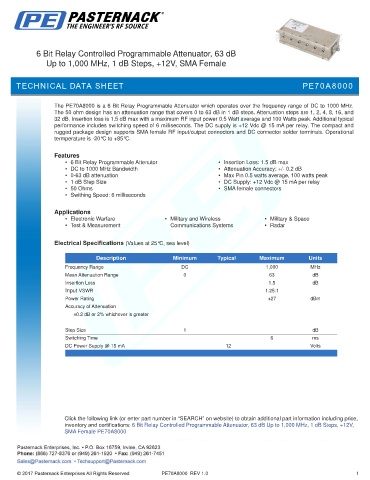

TECHNICAL DATA SHEET PE70A8000

The PE70A8000 is a 6 Bit Relay Programmable Attenuator which operates over the frequency range of DC to 1000 MHz.
The 50 ohm design has an attenuation range that covers 0 to 63 dB in 1 dB steps. Attenuation steps are 1, 2, 4, 8, 16, and
32 dB. Insertion loss is 1.5 dB max with a maximum RF input power 0.5 Watt average and 100 Watts peak. Additional typical
performance includes switching speed of 6 milliseconds. The DC supply is +12 Vdc @ 15 mA per relay. The compact and
rugged package design supports SMA female RF input/output connectors and DC connector solder terminals. Operational
termperature is -20°C to +85°C.

Features
• 6 Bit Relay Programmable Attenutor • Insertion Loss: 1.5 dB max
• DC to 1000 MHz Bandwidth • Attenuation Accuracy: +/- 0.2 dB
• 0-63 dB attenuation • Max Pin 0.5 watts average, 100 watts peak
• 1 dB Step Size • DC Supply: +12 Vdc @ 15 mA per relay
• 50 Ohms • SMA female connectors
• Swithing Speed: 6 milliseconds

Applications
• Electronic Warfare • Military and Wireless • Military & Space
• Test & Measurement Communications Systems • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Mean Attenuation Range 0 63 dB
Insertion Loss 1.5 dB
Input VSWR 1.25:1
Power Rating +27 dBm
Accuracy of Attenuation
±0.2 dB or 2% whichever is greater
.
Step Size 1 dB
Switching Time 6 ms
DC Power Supply @ 15 mA 12 Volts
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V,
SMA Female PE70A8000

PE70A8000 REV 1.0 1
