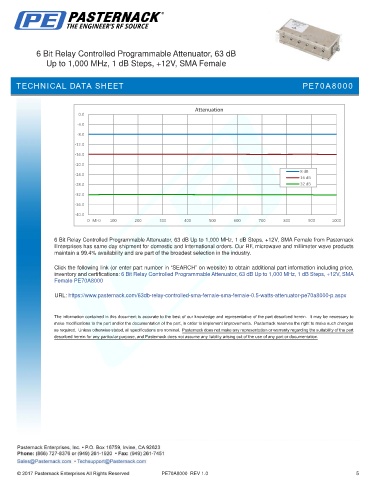

6 Bit Relay Controlled Programmable Attenuator, 63 dB
Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female

TECHNICAL DATA SHEET PE70A8000

Attenuation
0.0
-4.0
-8.0
-12.0
-16.0
-20.0
8 dB
-24.0
16 dB
-28.0 32 dB
-32.0
-36.0
-40.0
0 MHz 100 200 300 400 500 600 700 800 900 1000

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V, SMA Female from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 1 dB Steps, +12V, SMA
Female PE70A8000

URL: https://www.pasternack.com/63db-relay-controlled-sma-female-sma-female-0.5-watts-attenuator-pe70a8000-p.aspx

PE70A8000 REV 1.0 5
