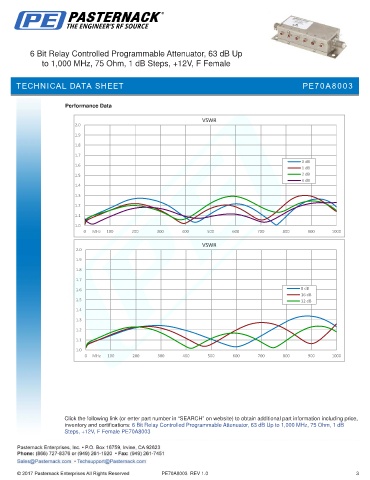

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up
to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

TECHNICAL DATA SHEET PE70A8003

Performance Data

VSWR
2.0
1.9
1.8
1.7
0 dB
1.6
1 dB
1.5 2 dB
4 dB
1.4
1.3
1.2
1.1
1.0
0 MHz 100 200 300 400 500 600 700 800 900 1000

VSWR
2.0
1.9
1.8
1.7
1.6 8 dB
16 dB
1.5 32 dB
1.4
1.3
1.2

1.1
1.0
0 MHz 100 200 300 400 500 600 700 800 900 1000

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB
Steps, +12V, F Female PE70A8003

PE70A8003 REV 1.0 3
