8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

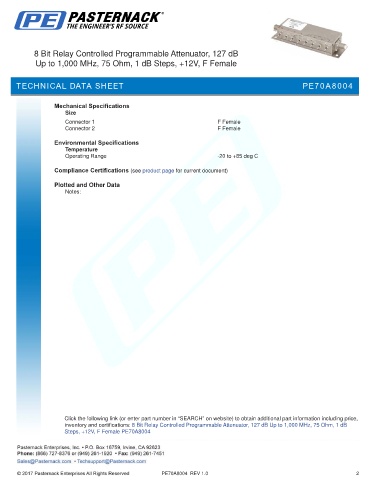

TECHNICAL DATA SHEET PE70A8004

Mechanical Specifications
Size
.
Connector 1 F Female
Connector 2 F Female

Environmental Specifications
Temperature
Operating Range -20 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB
Steps, +12V, F Female PE70A8004

PE70A8004 REV 1.0 2
