8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female

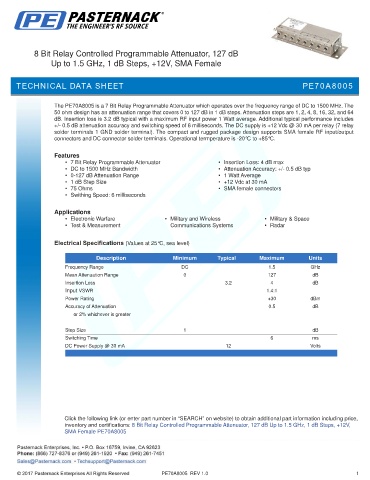

TECHNICAL DATA SHEET PE70A8005

The PE70A8005 is a 7 Bit Relay Programmable Attenuator which operates over the frequency range of DC to 1500 MHz. The
50 ohm design has an attenuation range that covers 0 to 127 dB in 1 dB steps. Attenuation steps are 1, 2, 4, 8, 16, 32, and 64
dB. Insertion loss is 3.2 dB typical with a maximum RF input power 1 Watt average. Additional typical performance includes
+/- 0.5 dB attenuation accuracy and switching speed of 6 milliseconds. The DC supply is +12 Vdc @ 30 mA per relay (7 relay
solder terminals 1 GND solder terminal). The compact and rugged package design supports SMA female RF input/output
connectors and DC connector solder terminals. Operational termperature is -20°C to +85°C.

Features
• 7 Bit Relay Programmable Attenuator • Insertion Loss: 4 dB max
• DC to 1500 MHz Bandwidth • Attenuation Accuracy: +/- 0.5 dB typ
• 0-127 dB Attenuation Range • 1 Watt Average
• 1 dB Step Size • +12 Vdc at 30 mA
• 75 Ohms • SMA female connectors
• Swithing Speed: 6 milliseconds

Applications
• Electronic Warfare • Military and Wireless • Military & Space
• Test & Measurement Communications Systems • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
Mean Attenuation Range 0 127 dB
Insertion Loss 3.2 4 dB
Input VSWR 1.4:1
Power Rating +30 dBm
Accuracy of Attenuation 0.5 dB
or 2% whichever is greater
.
Step Size 1 dB
Switching Time 6 ms
DC Power Supply @ 30 mA 12 Volts
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V,
SMA Female PE70A8005

PE70A8005 REV 1.0 1
