8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female

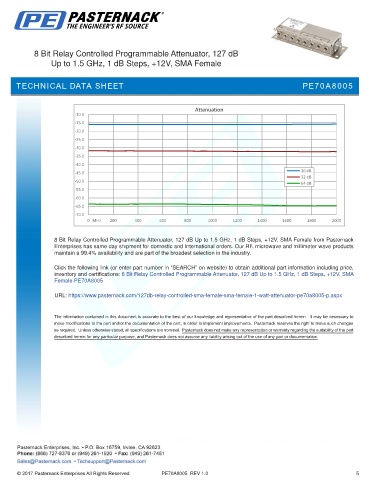

TECHNICAL DATA SHEET PE70A8005

Attenuation
-10.0
-15.0
-20.0
-25.0
-30.0
-35.0
-40.0
-45.0 16 dB
32 dB
-50.0
64 dB
-55.0
-60.0
-65.0
-70.0
0 MHz 200 400 600 800 1000 1200 1400 1600 1800 2000

8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V, SMA
Female PE70A8005

URL: https://www.pasternack.com/127db-relay-controlled-sma-female-sma-female-1-watt-attenuator-pe70a8005-p.aspx

PE70A8005 REV 1.0 5
