8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female

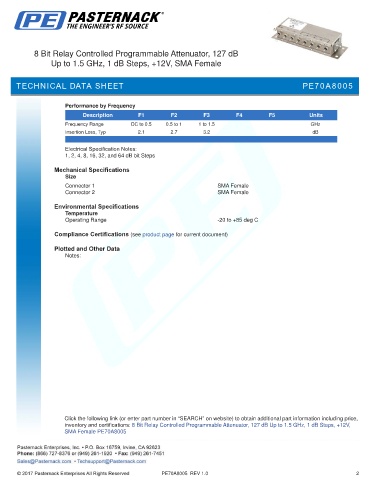

TECHNICAL DATA SHEET PE70A8005

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 0.5 0.5 to 1 1 to 1.5 GHz
Insertion Loss, Typ 2.1 2.7 3.2 dB
.
Electrical Specification Notes:
1, 2, 4, 8, 16, 32, and 64 dB bit Steps

Mechanical Specifications
Size
.
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range -20 to +85 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1.5 GHz, 1 dB Steps, +12V,
SMA Female PE70A8005

PE70A8005 REV 1.0 2
