8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

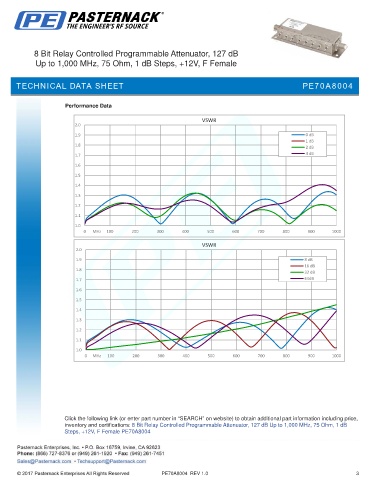

TECHNICAL DATA SHEET PE70A8004

Performance Data

VSWR
2.0
1.9 0 dB
1 dB
1.8 2 dB
1.7 4 dB

1.6
1.5
1.4
1.3
1.2
1.1
1.0
0 MHz 100 200 300 400 500 600 700 800 900 1000

VSWR
2.0
1.9 8 dB
16 dB
1.8
32 dB
1.7 64dB
1.6
1.5
1.4
1.3
1.2

1.1
1.0
0 MHz 100 200 300 400 500 600 700 800 900 1000

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB
Steps, +12V, F Female PE70A8004

PE70A8004 REV 1.0 3
