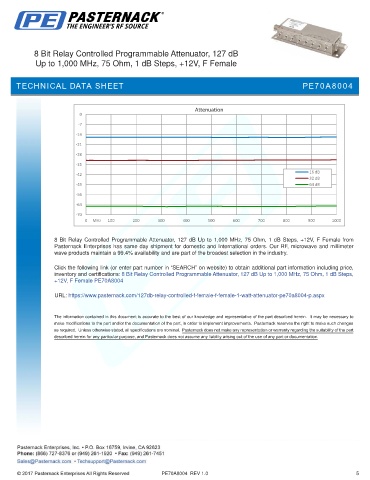

8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female

TECHNICAL DATA SHEET PE70A8004

Attenuation
0
-7
-14
-21
-28
-35
16 dB
-42
32 dB
-49 64 dB
-56
-63
-70
0 MHz 100 200 300 400 500 600 700 800 900 1000

8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 127 dB Up to 1,000 MHz, 75 Ohm, 1 dB Steps,
+12V, F Female PE70A8004

URL: https://www.pasternack.com/127db-relay-controlled-f-female-f-female-1-watt-attenuator-pe70a8004-p.aspx

PE70A8004 REV 1.0 5
