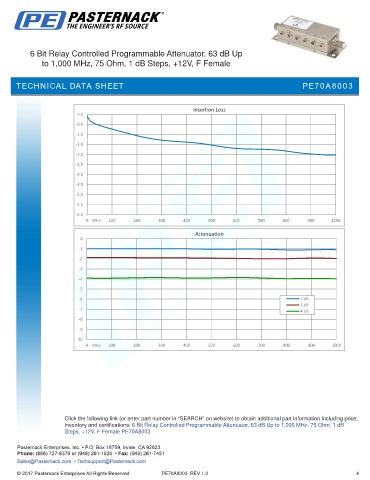

6 Bit Relay Controlled Programmable Attenuator, 63 dB Up
to 1,000 MHz, 75 Ohm, 1 dB Steps, +12V, F Female
TECHNICAL DATA SHEET PE70A8003
Insertion Loss
0.0
-0.5
-1.0
-1.5
-2.0
-2.5
-3.0
-3.5
-4.0
-4.5
-5.0
0 MHz 100 200 300 400 500 600 700 800 900 1000
Attenuation
0
-1
-2
-3
-4
-5
-6 1 dB
2 dB
-7
4 dB
-8
-9
-10
0 MHz 100 200 300 400 500 600 700 800 900 1000
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 Bit Relay Controlled Programmable Attenuator, 63 dB Up to 1,000 MHz, 75 Ohm, 1 dB
Steps, +12V, F Female PE70A8003
PE70A8003 REV 1.0 4
