8 Bit Relay Controlled Programmable Attenuator, 63.75 dB
Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female

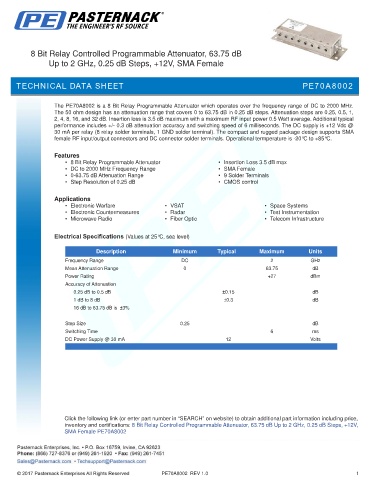

TECHNICAL DATA SHEET PE70A8002

The PE70A8002 is a 8 Bit Relay Programmable Attenuator which operates over the frequency range of DC to 2000 MHz.
The 50 ohm design has an attenuation range that covers 0 to 63.75 dB in 0.25 dB steps. Attenuation steps are 0.25, 0.5, 1,
2, 4, 8, 16, and 32 dB. Insertion loss is 3.5 dB maximum with a maximum RF input power 0.5 Watt average. Additional typical
performance includes +/- 0.3 dB attenuation accuracy and switching speed of 6 milliseconds. The DC supply is +12 Vdc @
30 mA per relay (8 relay solder terminals, 1 GND solder terminal). The compact and rugged package design supports SMA
female RF input/output connectors and DC connector solder terminals. Operational termperature is -20°C to +85°C.

Features
• 8 Bit Relay Programmable Attenuator • Insertion Loss 3.5 dB max
• DC to 2000 MHz Frequency Range • SMA Female
• 0-63.75 dB Attenuation Range • 9 Solder Terminals
• Step Resolution of 0.25 dB • CMOS control

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
Mean Attenuation Range 0 63.75 dB
Power Rating +27 dBm
Accuracy of Attenuation
0.25 dB to 0.5 dB ±0.15 dB
1 dB to 8 dB ±0.3 dB
16 dB to 63.75 dB is ±3%
.
Step Size 0.25 dB
Switching Time 6 ms
DC Power Supply @ 30 mA 12 Volts
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V,
SMA Female PE70A8002

PE70A8002 REV 1.0 1
