8 Bit Relay Controlled Programmable Attenuator, 63.75 dB
Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female

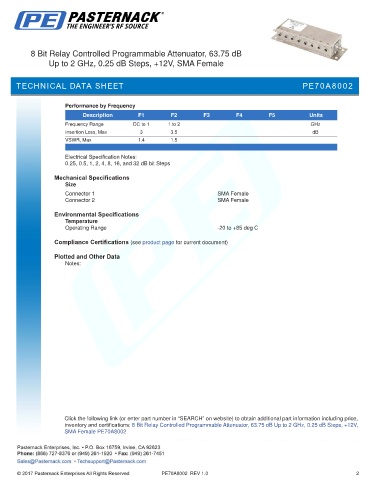

TECHNICAL DATA SHEET PE70A8002

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 2 GHz
Insertion Loss, Max 3 3.5 dB
VSWR, Max 1.4 1.5
.
Electrical Specification Notes:
0.25, 0.5, 1, 2, 4, 8, 16, and 32 dB bit Steps

Mechanical Specifications
Size
.
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range -20 to +85 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 8 Bit Relay Controlled Programmable Attenuator, 63.75 dB Up to 2 GHz, 0.25 dB Steps, +12V,
SMA Female PE70A8002

PE70A8002 REV 1.0 2
