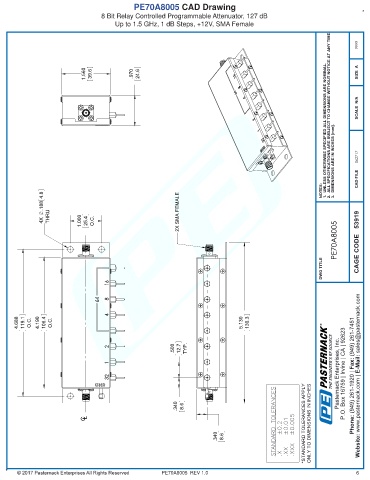

PE70A8005 CAD Drawing
8 Bit Relay Controlled Programmable Attenuator, 127 dB
Up to 1.5 GHz, 1 dB Steps, +12V, SMA Female
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
9999

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
1.560 39.6 .970 24.6 SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 062717

NOTES: CAD FILE
4.8
.188 2X SMA FEMALE
4X THRU 1.000 25.4 O.C.
PE70A8005 CAGE CODE 53919

DWG TITLE

4.688 119.1 O.C. 4.190 106.4 O.C. 5.130 130.3 R

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
.500 12.7 TYP.

.340 8.6

C L STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
.340 8.6 .X ±0.2 .XX ±0.01 .XXX ±0.005

PE70A8005 REV 1.0 6
