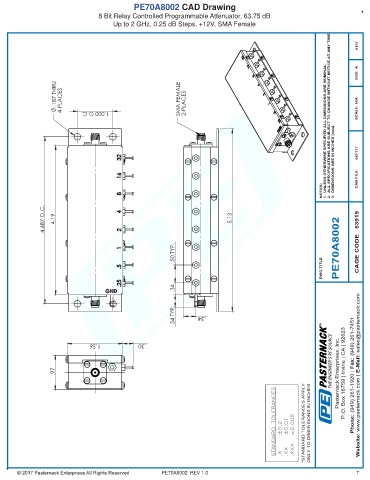

PE70A8002 CAD Drawing
8 Bit Relay Controlled Programmable Attenuator, 63.75 dB
Up to 2 GHz, 0.25 dB Steps, +12V, SMA Female

0157

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A

.187 THRU 4-PLACES 1.000 O.C. SMA FEMALE 2-PLACES 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 041117

NOTES: CAD FILE

4.687 O.C. 4.19 5.13

.50 TYP. PE70A8002 CAGE CODE 53919

DWG TITLE

.34

.34 TYP. .34 R

THE ENGINEER'S RF SOURCE

.30
1.56

.97 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE70A8002 REV 1.0 7
