31.5 dB With 6 Bit Programmable TTL Controlled Attenuator,
SMA Female to SMA Female, 0.5 dB Steps Up to 13 GHz

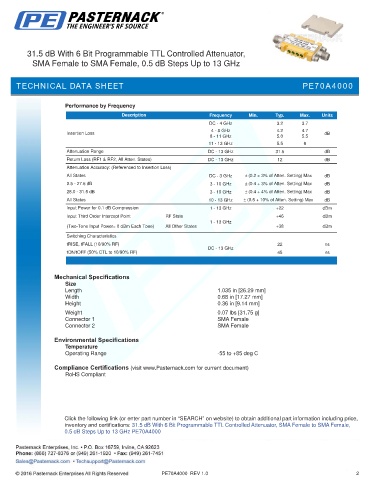

TECHNICAL DATA SHEET PE70A4000

Performance by Frequency
Description Frequency Min. Typ. Max. Units
DC - 4 GHz 3.2 3.7
4 - 8 GHz 4.2 4.7
Insertion Loss dB
8 - 11 GHz 5.0 5.5
11 - 13 GHz 5.5 6
Attenuation Range DC - 13 GHz 31.5 dB
Return Loss (RF1 & RF2, All Atten. States) DC - 13 GHz 12 dB
Attenuation Accuracy: (Referenced to Insertion Loss)
All States DC - 3 GHz ± (0.2 + 3% of Atten. Setting) Max dB
0.5 - 27.5 dB 3 - 10 GHz ± (0.4 + 3% of Atten. Setting) Max dB
28.0 - 31.5 dB 3 - 10 GHz ± (0.4 + 4% of Atten. Setting) Max dB
All States 10 - 13 GHz ± (0.6 + 10% of Atten. Setting) Max dB
Input Power for 0.1 dB Compression 1 - 13 GHz +22 dBm
Input Third Order Intercept Point RF State +46 dBm
1 - 13 GHz
(Two-Tone Input Power= 0 dBm Each Tone) All Other States +38 dBm
Switching Characteristics
tRISE, tFALL (10/90% RF) 22 ns
DC - 13 GHz
tON/tOFF (50% CTL to 10/90% RF) 45 ns

Mechanical Specifications
Size
Length 1.035 in [26.29 mm]
Width 0.68 in [17.27 mm]
Height 0.36 in [9.14 mm]
.
Weight 0.07 lbs [31.75 g]
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range -55 to +85 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Up to 13 GHz PE70A4000

PE70A4000 REV 1.0 2
