31.5 dB With 6 Bit Programmable TTL Controlled Attenuator,
SMA Female to SMA Female, 0.5 dB Steps Up to 13 GHz

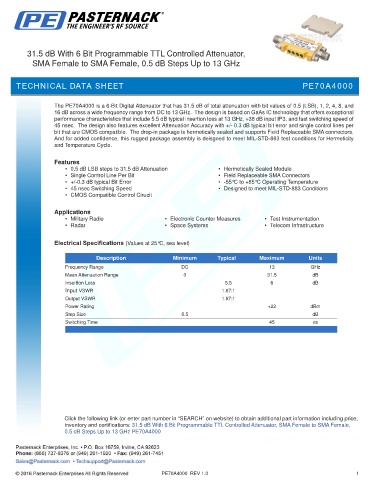

TECHNICAL DATA SHEET PE70A4000

The PE70A4000 is a 6-Bit Digital Attenuator that has 31.5 dB of total attenuation with bit values of 0.5 (LSB), 1, 2, 4, 8, and
16 dB across a wide frequency range from DC to 13 GHz. The design is based on GaAs IC technology that offers exceptional
performance characteristics that include 5.5 dB typical insertion loss at 13 GHz, +38 dB input IP3, and fast switching speed of
45 nsec. The design also features excellent Attenuation Accuracy with +/- 0.3 dB typical bit error and single control lines per
bit that are CMOS compatible. The drop-in package is hermetically sealed and supports Field Replaceable SMA connectors.
And for added confidence, this rugged package assembly is deisgned to meet MIL-STD-883 test conditions for Hermeticity
and Temperature Cycle.

Features
• 0.5 dB LSB steps to 31.5 dB Attenuation • Hermetically Sealed Module
• Single Control Line Per Bit • Field Replaceable SMA Connectors
• +/-0.3 dB typical Bit Error • -55°C to +85°C Operating Temperature
• 45 nsec Switching Speed • Designed to meet MIL-STD-883 Conditions
• CMOS Compatible Control Cirucit

Applications
• Military Radio • Electronic Counter Measures • Test Instrumentation
• Radar • Space Systems • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range DC 13 GHz
Mean Attenuation Range 0 31.5 dB
Insertion Loss 5.5 6 dB
Input VSWR 1.67:1
Output VSWR 1.67:1
Power Rating +22 dBm
Step Size 0.5 dB
Switching Time 45 ns
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Up to 13 GHz PE70A4000

PE70A4000 REV 1.0 1
