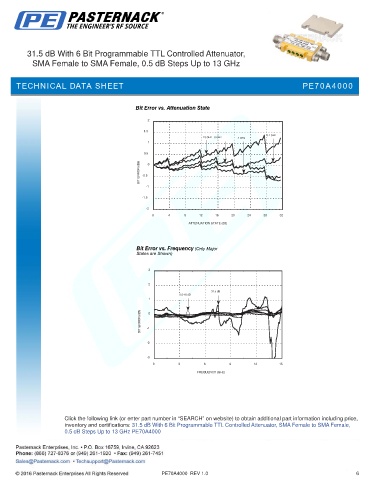

31.5 dB With 6 Bit Programmable TTL Controlled Attenuator,
SMA Female to SMA Female, 0.5 dB Steps Up to 13 GHz

TECHNICAL DATA SHEET PE70A4000

Bit Error vs. Attenuation State
2

1.5
0.1 GHz
13 GHz 8 GHz 4 GHz
1
0.5
BIT ERROR (dB) -0.5 0

-1
-1.5

-2
0 4 8 12 16 20 24 28 32
ATTENUATION STATE (dB)

Bit Error vs. Frequency (Only Major
States are Shown)

3

2
31.5 dB
0.5-16 dB
1
BIT ERROR (dB) -1 0

-2

-3
0 3 6 9 12 15
FREQUENCY (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Up to 13 GHz PE70A4000

PE70A4000 REV 1.0 6
