63 dB Programmable TTL Controlled Attenuator,
75 F Female to 75 F Female, 1 dB Steps Rated
to 30 Watts From 5 MHz to 2.15 GHz

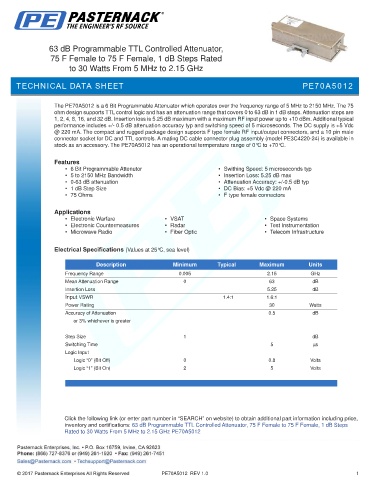

TECHNICAL DATA SHEET PE70A5012

The PE70A5012 is a 6 Bit Programmable Attenuator which operates over the frequency range of 5 MHz to 2150 MHz. The 75
ohm design supports TTL control logic and has an attenuation range that covers 0 to 63 dB in 1 dB steps. Attenuation steps are
1, 2, 4, 8, 16, and 32 dB. Insertion loss is 5.25 dB maximum with a maximum RF input power up to +10 dBm. Additional typical
performance includes +/- 0.5 dB attenuation accuracy typ and switching speed of 5 microseconds. The DC supply is +5 Vdc
@ 220 mA. The compact and rugged package design supports F type female RF input/output connectors, and a 10 pin male
connector socket for DC and TTL controls. A mating DC cable connector plug assembly (model PE3C4220-24) is available in
stock as an accessory. The PE70A5012 has an operational termperature range of 0°C to +70°C.

Features
• 6 Bit Programmable Attenutor • Swithing Speed: 5 microseconds typ
• 5 to 2150 MHz Bandwidth • Insertion Loss: 5.25 dB max
• 0-63 dB attenuation • Attenuation Accuracy: +/-0.5 dB typ
• 1 dB Step Size • DC Bias: +5 Vdc @ 220 mA
• 75 Ohms • F type female connectors

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.005 2.15 GHz
Mean Attenuation Range 0 63 dB
Insertion Loss 5.25 dB
Input VSWR 1.4:1 1.6:1
Power Rating 30 Watts
Accuracy of Attenuation 0.5 dB
or 3% whichever is greater
.
Step Size 1 dB
Switching Time 5 µs
Logic Input
Logic “0” (Bit Off) 0 0.8 Volts
Logic “1” (Bit On) 2 5 Volts
.
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 63 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps
Rated to 30 Watts From 5 MHz to 2.15 GHz PE70A5012

PE70A5012 REV 1.0 1
