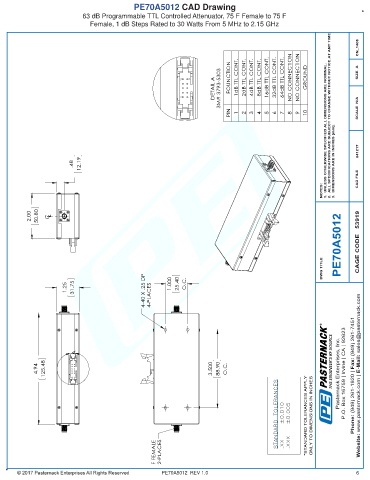

PE70A5012 CAD Drawing
63 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F
Female, 1 dB Steps Rated to 30 Watts From 5 MHz to 2.15 GHz

CN_1408

DETAIL A 3M# 3793-5303
10 9 FOUNCTION 1dB TTL CONT. 2dB TTL CONT. 4dB TTL CONT. 8dB TTL CONT. 16dB TTL CONT. 32dB TTL CONT. 64dB TTL CONT. NO CONNECTION NO CONNECTION GROUND SIZE A

2 1
PIN 1 2 3 4 5 6 7 8 9 10 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm].

041217
.48 12.19

CAD FILE
NOTES:

2.00 50.80 C L
PE70A5012 CAGE CODE 53919

DWG TITLE

1.25 31.75 4-40 X .25 DP 1.000 25.40 O.C.

4-PLACES

R

A
THE ENGINEER'S RF SOURCE
4.94 125.48 3.500 88.90 O.C. Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623

STANDARD TOLERANCES .XX ±0.010 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

F FEMALE 2-PLACES

PE70A5012 REV 1.0 6
