31.75 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 0.25 dB Steps From 30 MHz to 3 GHz

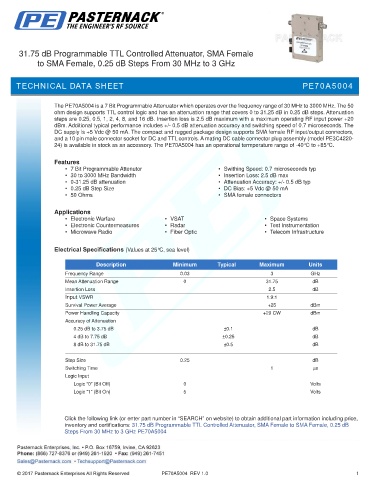

TECHNICAL DATA SHEET PE70A5004

The PE70A5004 is a 7 Bit Programmable Attenuator which operates over the frequency range of 30 MHz to 3000 MHz. The 50
ohm design supports TTL control logic and has an attenuation range that covers 0 to 31.25 dB in 0.25 dB steps. Attenuation
steps are 0.25, 0.5, 1, 2, 4, 8, and 16 dB. Insertion loss is 2.5 dB maximum with a maximum operating RF input power +20
dBm. Additional typical performance includes +/- 0.5 dB attenuation accuracy and switching speed of 0.7 microseconds. The
DC supply is +5 Vdc @ 50 mA. The compact and rugged package design supports SMA female RF input/output connectors,
and a 10 pin male connector socket for DC and TTL controls. A mating DC cable connector plug assembly (model PE3C4220-
24) is available in stock as an accessory. The PE70A5004 has an operational termperature range of -40°C to +85°C.

Features
• 7 Bit Programmable Attenutor • Swithing Speed: 0.7 microseconds typ
• 30 to 3000 MHz Bandwidth • Insertion Loss: 2.5 dB max
• 0-31.25 dB attenuation • Attenuation Accuracy: +/- 0.5 dB typ
• 0.25 dB Step Size • DC Bias: +5 Vdc @ 50 mA
• 50 Ohms • SMA female connectors

Applications
• Electronic Warfare • VSAT • Space Systems
• Electronic Countermeasures • Radar • Test Instrumentation
• Microwave Radio • Fiber Optic • Telecom Infrastructure

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.03 3 GHz
Mean Attenuation Range 0 31.75 dB
Insertion Loss 2.5 dB
Input VSWR 1.9:1
Survival Power Average +25 dBm
Power Handling Capacity +20 CW dBm
Accuracy of Attenuation
0.25 dB to 3.75 dB ±0.1 dB
4 dB to 7.75 dB ±0.25 dB
8 dB to 31.75 dB ±0.5 dB
.
Step Size 0.25 dB
Switching Time 1 µs
Logic Input
Logic “0” (Bit Off) 0 Volts
Logic “1” (Bit On) 5 Volts
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.75 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 0.25 dB
Steps From 30 MHz to 3 GHz PE70A5004

PE70A5004 REV 1.0 1
