31.75 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 0.25 dB Steps From 30 MHz to 3 GHz

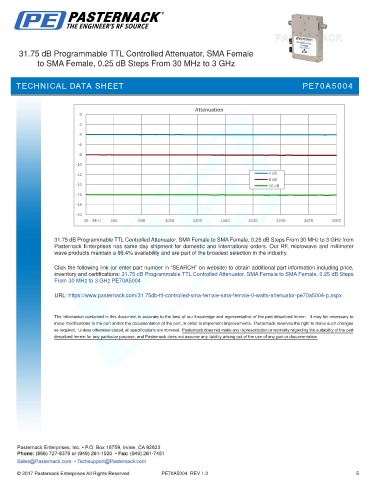

TECHNICAL DATA SHEET PE70A5004

Attenuation
0
-2
-4
-6
-8
-10
-12 4 dB
8 dB
-14 16 dB
-16
-18
-20
30 MHz 360 690 1020 1350 1680 2010 2340 2670 3000

31.75 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 0.25 dB Steps From 30 MHz to 3 GHz from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.75 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 0.25 dB Steps
From 30 MHz to 3 GHz PE70A5004

URL: https://www.pasternack.com/31.75db-ttl-controlled-sma-female-sma-female-0-watts-attenuator-pe70a5004-p.aspx

PE70A5004 REV 1.0 5
