63 dB Programmable TTL Controlled Attenuator,
75 F Female to 75 F Female, 1 dB Steps Rated
to 30 Watts From 5 MHz to 2.15 GHz

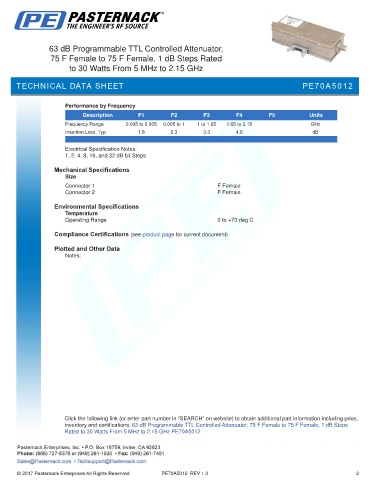

TECHNICAL DATA SHEET PE70A5012

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range 0.005 to 0.005 0.005 to 1 1 to 1.65 1.65 to 2.15 GHz
Insertion Loss, Typ 1.6 2.3 3.3 4.6 dB
.
Electrical Specification Notes:
1, 2, 4, 8, 16, and 32 dB bit Steps

Mechanical Specifications
Size
.
Connector 1 F Female
Connector 2 F Female

Environmental Specifications
Temperature
Operating Range 0 to +70 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 63 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps
Rated to 30 Watts From 5 MHz to 2.15 GHz PE70A5012

PE70A5012 REV 1.0 2
