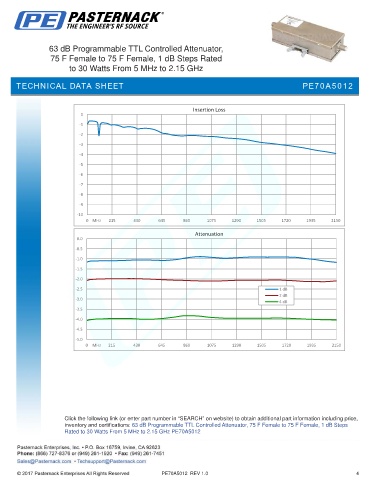

63 dB Programmable TTL Controlled Attenuator,
75 F Female to 75 F Female, 1 dB Steps Rated
to 30 Watts From 5 MHz to 2.15 GHz

TECHNICAL DATA SHEET PE70A5012

Insertion Loss
0
-1
-2
-3
-4
-5
-6

-7
-8
-9
-10
0 MHz 215 430 645 860 1075 1290 1505 1720 1935 2150

Attenuation
0.0
-0.5
-1.0
-1.5
-2.0
-2.5 1 dB
2 dB
-3.0
4 dB
-3.5
-4.0
-4.5
-5.0
0 MHz 215 430 645 860 1075 1290 1505 1720 1935 2150

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 63 dB Programmable TTL Controlled Attenuator, 75 F Female to 75 F Female, 1 dB Steps
Rated to 30 Watts From 5 MHz to 2.15 GHz PE70A5012

PE70A5012 REV 1.0 4
