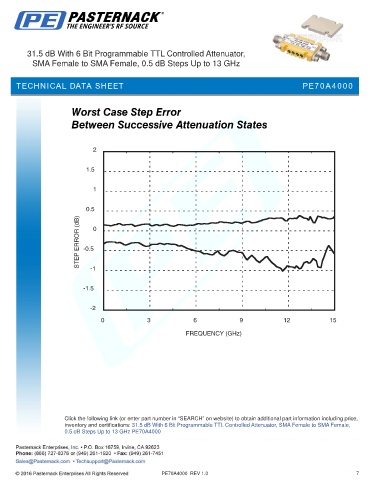

31.5 dB With 6 Bit Programmable TTL Controlled Attenuator,
SMA Female to SMA Female, 0.5 dB Steps Up to 13 GHz
TECHNICAL DATA SHEET PE70A4000
Worst Case Step Error
Between Successive Attenuation States
2
1.5
1
0.5
STEP ERROR (dB) -0.5 0
-1
-1.5
-2
0 3 6 9 12 15
FREQUENCY (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Up to 13 GHz PE70A4000
PE70A4000 REV 1.0 7
