31.5 dB With 6 Bit Programmable TTL Controlled Attenuator,
SMA Female to SMA Female, 0.5 dB Steps Up to 13 GHz

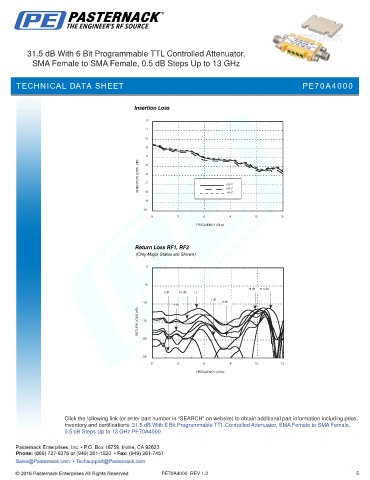

TECHNICAL DATA SHEET PE70A4000

Insertion Loss
0
-1
-2
-3
-4
INSERTION LOSS (dB) -6 +25 C
-5

-7
+85 C
-8
-9 -40 C
-10
0 3 6 9 12 15
FREQUENCY (GHz)

Return Loss RF1, RF2
(Only Major States are Shown)

0

-5
16 dB 31.5 dB
2 dB 0.5 dB I.L
1 dB
-10 8 dB
4 dB
RETURN LOSS (dB) -15

-20

-25
0 3 6 9 12 15
FREQUENCY (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Up to 13 GHz PE70A4000

PE70A4000 REV 1.0 5
