31.5 dB With 6 Bit Programmable TTL Controlled Attenuator,
SMA Female to SMA Female, 0.5 dB Steps Up to 13 GHz
TECHNICAL DATA SHEET PE70A4000
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

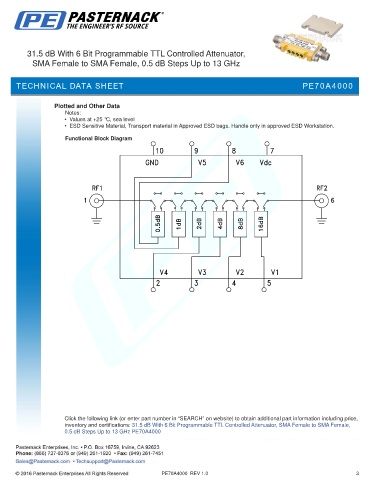

Functional Block Diagram
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable TTL Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Up to 13 GHz PE70A4000
PE70A4000 REV 1.0 3
