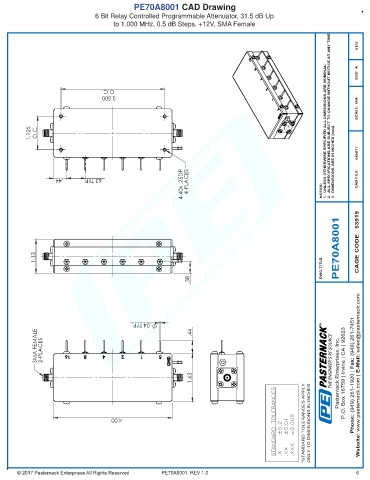

PE70A8001 CAD Drawing
6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up
to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
0157
SIZE A
O.C.
SCALE N/A
3.500
1.125 O.C. 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 040817
4-40x .25DP 4-PLACES NOTES: 3. DIMENSIONS ARE IN INCHES [mm]. CAD FILE
.63 TYP.
.44
PE70A8001 CAGE CODE 53919
1.13 DWG TITLE
.38
R
SMA FEMALE 2-PLACES THE ENGINEER'S RF SOURCE
.44
.04 TYP.
1.63 Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
4.00
PE70A8001 REV 1.0 6
