6 Bit Relay Controlled Programmable Attenuator, 31.5 dB
Up to 1,000 MHz, 0.5 dB Steps, +12V, SMA Female

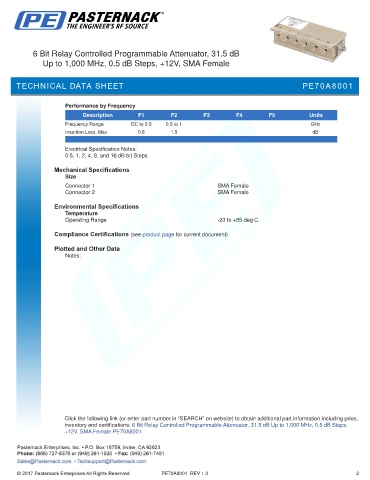

TECHNICAL DATA SHEET PE70A8001

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 0.5 0.5 to 1 GHz
Insertion Loss, Max 0.8 1.5 dB
.
Electrical Specification Notes:
0.5, 1, 2, 4, 8, and 16 dB bit Steps

Mechanical Specifications
Size
.
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range -20 to +85 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 6 Bit Relay Controlled Programmable Attenuator, 31.5 dB Up to 1,000 MHz, 0.5 dB Steps,
+12V, SMA Female PE70A8001

PE70A8001 REV 1.0 2
