P. 2842
31.5 dB With 6 Bit Programmable CMOS Controlled
Attenuator, SMA Female to SMA Female, 0.5 dB
Steps Rated to 0.32 Watts Up to 13 GHz
TECHNICAL DATA SHEET PE70A5003

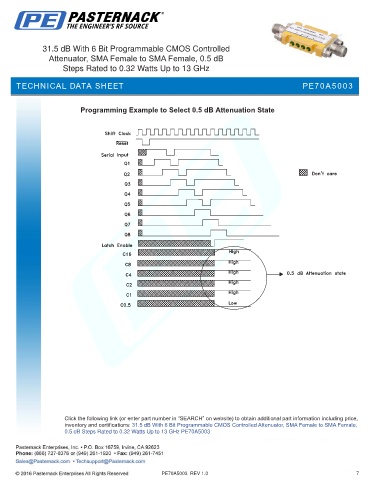

Programming Example to Select 0.5 dB Attenuation State
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 31.5 dB With 6 Bit Programmable CMOS Controlled Attenuator, SMA Female to SMA Female,
0.5 dB Steps Rated to 0.32 Watts Up to 13 GHz PE70A5003
PE70A5003 REV 1.0 7
