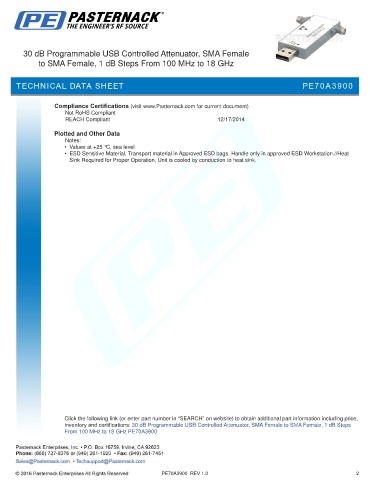

30 dB Programmable USB Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 100 MHz to 18 GHz
TECHNICAL DATA SHEET PE70A3900
Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant
REACH Compliant 12/17/2014
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.//Heat
Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Programmable USB Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 100 MHz to 18 GHz PE70A3900
PE70A3900 REV 1.0 2
