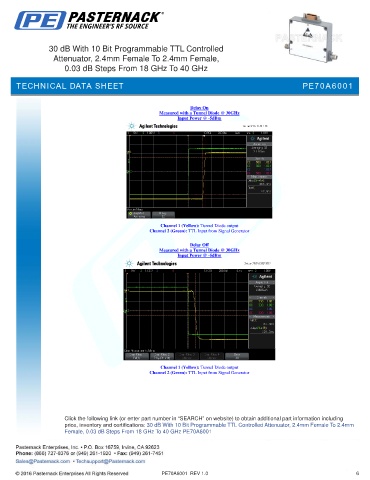

30 dB With 10 Bit Programmable TTL Controlled
Attenuator, 2.4mm Female To 2.4mm Female,
0.03 dB Steps From 18 GHz To 40 GHz
TECHNICAL DATA SHEET PE70A6001
Delay On
Measured with a Tunnel Diode @ 30GHz
Input Power @ -5dBm
Channel 1 (Yellow): Tunnel Diode output
Channel 2 (Green): TTL Input from Signal Generator
Delay Off
Measured with a Tunnel Diode @ 30GHz
Input Power @ -5dBm
Channel 1 (Yellow): Tunnel Diode output
Channel 2 (Green): TTL Input from Signal Generator
