P. 2989
30 dB With 10 Bit Programmable TTL Controlled
Attenuator, 2.4mm Female To 2.4mm Female,
0.03 dB Steps From 18 GHz To 40 GHz
TECHNICAL DATA SHEET PE70A6001
Performance Data

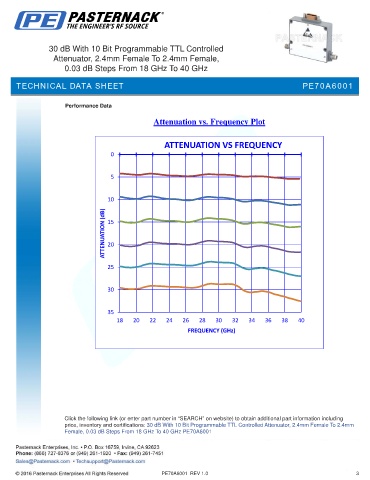

Attenuation vs. Frequency Plot
ATTENUATION VS FREQUENCY
0
5
10
ATTENUATION (dB) 15
20
25
30
35
18 20 22 24 26 28 30 32 34 36 38 40
FREQUENCY (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 30 dB With 10 Bit Programmable TTL Controlled Attenuator, 2.4mm Female To 2.4mm
Female, 0.03 dB Steps From 18 GHz To 40 GHz PE70A6001
PE70A6001 REV 1.0 3
