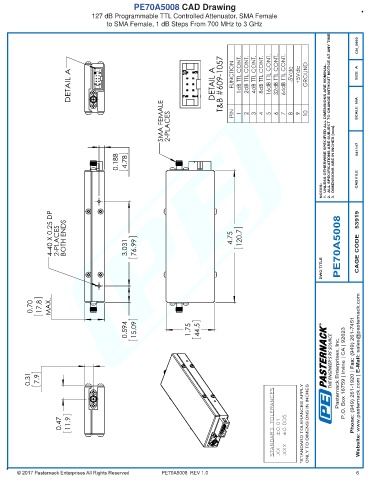

PE70A5008 CAD Drawing
127 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 700 MHz to 3 GHz

CN_0992

DETAIL A DETAIL A T&B #609-1057 FUNCTION 1dB TTL CONT. 2dB TTL CONT. 4dB TTL CONT. 8dB TTL CONT. 16dB TTL CONT. 32dB TTL CONT. 64dB TTL CONT. -5Vdc +5Vdc GROUND SIZE A

SMA FEMALE 2-PLACES PIN 1 2 3 4 5 6 7 8 9 10 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

041117
0.188 4.78 3. DIMENSIONS ARE IN INCHES [mm].

CAD FILE

NOTES:

4-40 X 0.25 DP 2-PLACES BOTH ENDS 4.75 120.7 PE70A5008 CAGE CODE 53919

DWG TITLE
3.031 76.99

0.70 17.8 MAX.

R
0.594 15.09 1.75 44.5

THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623
0.31 7.9 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES

0.47 11.9 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.XX ±0.01 .XXX ±0.005

PE70A5008 REV 1.0 6
