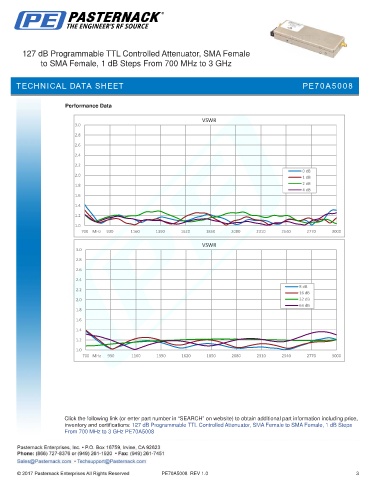

127 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 700 MHz to 3 GHz

TECHNICAL DATA SHEET PE70A5008

Performance Data

VSWR
3.0
2.8
2.6
2.4

2.2
0 dB
2.0
1 dB
1.8 2 dB
4 dB
1.6
1.4
1.2
1.0
700 MHz 930 1160 1390 1620 1850 2080 2310 2540 2770 3000

VSWR
3.0
2.8
2.6
2.4
8 dB
2.2
16 dB
2.0 32 dB
64 dB
1.8
1.6
1.4

1.2
1.0
700 MHz 930 1160 1390 1620 1850 2080 2310 2540 2770 3000

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 127 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 700 MHz to 3 GHz PE70A5008

PE70A5008 REV 1.0 3
