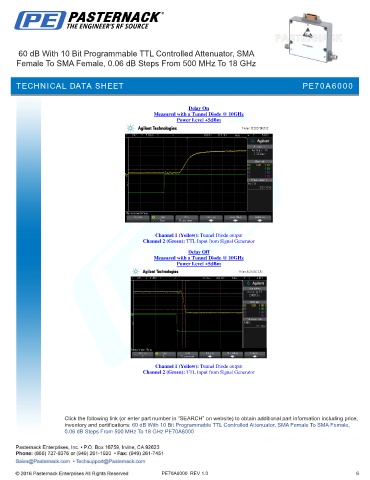

60 dB With 10 Bit Programmable TTL Controlled Attenuator, SMA
Female To SMA Female, 0.06 dB Steps From 500 MHz To 18 GHz
TECHNICAL DATA SHEET PE70A6000
Delay On
Measured with a Tunnel Diode @ 10GHz
Power Level +5dBm
Channel 1 (Yellow): Tunnel Diode output
Channel 2 (Green): TTL Input from Signal Generator
Delay Off
Measured with a Tunnel Diode @ 10GHz
Power Level +5dBm
Channel 1 (Yellow): Tunnel Diode output
Channel 2 (Green): TTL Input from Signal Generator
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 60 dB With 10 Bit Programmable TTL Controlled Attenuator, SMA Female To SMA Female,
0.06 dB Steps From 500 MHz To 18 GHz PE70A6000
