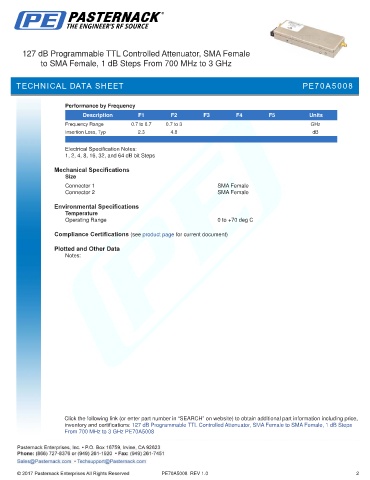

127 dB Programmable TTL Controlled Attenuator, SMA Female
to SMA Female, 1 dB Steps From 700 MHz to 3 GHz

TECHNICAL DATA SHEET PE70A5008

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range 0.7 to 0.7 0.7 to 3 GHz
Insertion Loss, Typ 2.3 4.8 dB
.
Electrical Specification Notes:
1, 2, 4, 8, 16, 32, and 64 dB bit Steps

Mechanical Specifications
Size
.
Connector 1 SMA Female
Connector 2 SMA Female

Environmental Specifications
Temperature
Operating Range 0 to +70 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 127 dB Programmable TTL Controlled Attenuator, SMA Female to SMA Female, 1 dB Steps
From 700 MHz to 3 GHz PE70A5008

PE70A5008 REV 1.0 2
