30 dB Programmable USB Controlled Attenuator, 2.92mm Female
to 2.92mm Female, 1 dB Steps From 100 MHz to 40 GHz

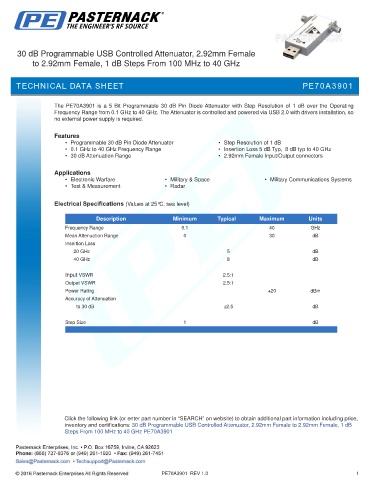

TECHNICAL DATA SHEET PE70A3901

The PE70A3901 is a 5 Bit Programmable 30 dB Pin Diode Attenuator with Step Resolution of 1 dB over the Operating
Frequency Range from 0.1 GHz to 40 GHz. The Attenuator is controlled and powered via USB 2.0 with drivers installation, so
no external power supply is required.

Features
• Programmable 30 dB Pin Diode Attenuator • Step Resolution of 1 dB
• 0.1 GHz to 40 GHz Frequency Range • Insertion Loss 5 dB Typ, 8 dB typ to 40 GHz
• 30 dB Attenuation Range • 2.92mm Female Input/Output connectors

Applications
• Electronic Warfare • Military & Space • Military Communications Systems
• Test & Measurement • Radar

Electrical Specifications (Values at 25°C, sea level)

Description Minimum Typical Maximum Units
Frequency Range 0.1 40 GHz
Mean Attenuation Range 0 30 dB
Insertion Loss
20 GHz 5 dB
40 GHz 8 dB
.
Input VSWR 2.5:1
Output VSWR 2.5:1
Power Rating +20 dBm
Accuracy of Attenuation
to 30 dB ±2.5 dB
.
Step Size 1 dB
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Programmable USB Controlled Attenuator, 2.92mm Female to 2.92mm Female, 1 dB
Steps From 100 MHz to 40 GHz PE70A3901

PE70A3901 REV 1.0 1
