30 dB Programmable USB Controlled Attenuator, 2.92mm Female
to 2.92mm Female, 1 dB Steps From 100 MHz to 40 GHz

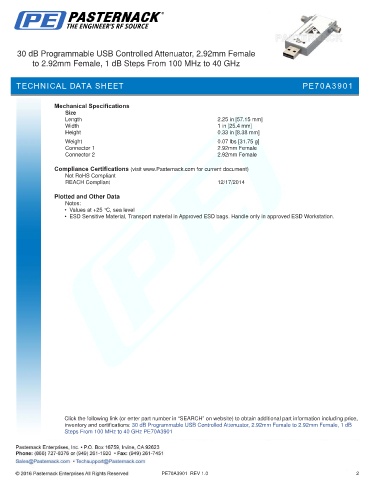

TECHNICAL DATA SHEET PE70A3901

Mechanical Specifications
Size
Length 2.25 in [57.15 mm]
Width 1 in [25.4 mm]
Height 0.33 in [8.38 mm]
.
Weight 0.07 lbs [31.75 g]
Connector 1 2.92mm Female
Connector 2 2.92mm Female

Compliance Certifications (visit www.Pasternack.com for current document)
Not RoHS Compliant
REACH Compliant 12/17/2014

Plotted and Other Data
Notes:
• Values at +25 °C, sea level
• ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 30 dB Programmable USB Controlled Attenuator, 2.92mm Female to 2.92mm Female, 1 dB
Steps From 100 MHz to 40 GHz PE70A3901

PE70A3901 REV 1.0 2
