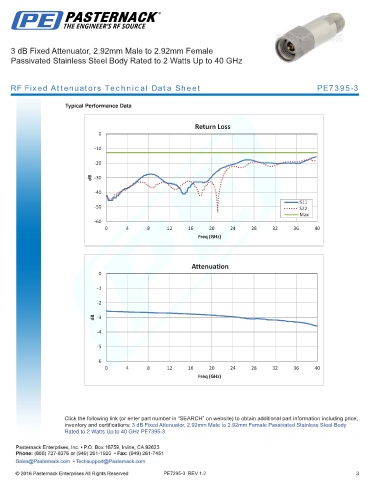

3 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female
Passivated Stainless Steel Body Rated to 2 Watts Up to 40 GHz
RF Fixed Attenuators Technical Data Sheet PE7395-3
Typical Performance Data
Return Loss
0
-10
-20
dB -30
-40
S11
-50 S22
Max
-60
0 4 8 12 16 20 24 28 32 36 40
Freq (GHz)
Attenuation
0
-1
-2
dB -3
-4
-5
-6
0 4 8 12 16 20 24 28 32 36 40
Freq (GHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, 2.92mm Male to 2.92mm Female Passivated Stainless Steel Body
Rated to 2 Watts Up to 40 GHz PE7395-3
