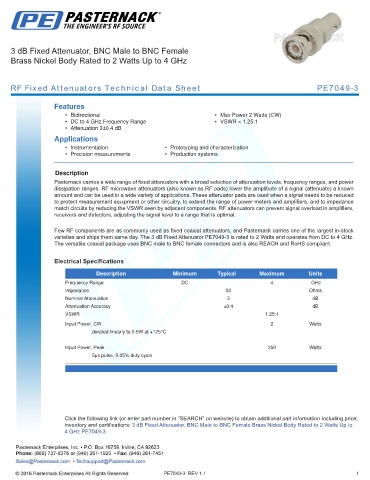

3 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 2 Watts Up to 4 GHz

RF Fixed Attenuators Technical Data Sheet PE7049-3

Features
• Bidirectional • Max Power 2 Watts (CW)
• DC to 4 GHz Frequency Range • VSWR < 1.25:1
• Attenuation 3±0.4 dB
Applications
• Instrumentation • Prototyping and characterization
• Precision measurements • Production systems
.
Description
Pasternack carries a wide range of fixed attenuators with a broad selection of attenuation levels, frequency ranges, and power
dissipation ranges. RF microwave attenuators (also known as RF pads) lower the amplitude of a signal (attenuate) a known
amount and can be used in a wide variety of applications. These attenuator pads are used when a signal needs to be reduced
to protect measurement equipment or other circuitry, to extend the range of power meters and amplifiers, and to impedance
match circuits by reducing the VSWR seen by adjacent components. RF attenuators can prevent signal overload in amplifiers,
receivers and detectors, adjusting the signal level to a range that is optimal.

Few RF components are as commonly used as fixed coaxial attenuators, and Pasternack carries one of the largest in-stock
varieties and ships them same day. The 3 dB Fixed Attenuator PE7049-3 is rated to 2 Watts and operates from DC to 4 GHz.
The versatile coaxial package uses BNC male to BNC female connectors and is also REACH and RoHS compliant.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
Impedance 50 Ohms
Nominal Attenuation 3 dB
Attenuation Accuracy ±0.4 dB
VSWR 1.25:1
Input Power, CW 2 Watts
derated linearly to 0.5W at +125°C

Input Power, Peak 250 Watts
5µs pulse, 0.05% duty cycle
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 2 Watts Up to
4 GHz PE7049-3

PE7049-3 REV 1.1 1
