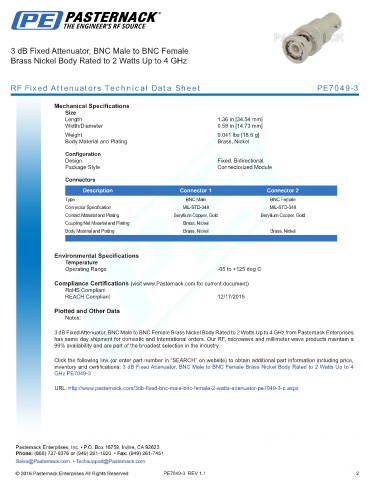

3 dB Fixed Attenuator, BNC Male to BNC Female
Brass Nickel Body Rated to 2 Watts Up to 4 GHz

RF Fixed Attenuators Technical Data Sheet PE7049-3

Mechanical Specifications
Size
Length 1.36 in [34.54 mm]
Width/Diameter 0.58 in [14.73 mm]
.
Weight 0.041 lbs [18.6 g]
Body Material and Plating Brass, Nickel

Configuration
Design Fixed, Bidirectional
Package Style Connectorized Module
Connectors
Description Connector 1 Connector 2
Type BNC Male BNC Female
Connector Specification MIL-STD-348 MIL-STD-348
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel Brass, Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +125 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 12/17/2015

Plotted and Other Data
Notes:

3 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 2 Watts Up to 4 GHz from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 3 dB Fixed Attenuator, BNC Male to BNC Female Brass Nickel Body Rated to 2 Watts Up to 4
GHz PE7049-3

URL: http://www.pasternack.com/3db-fixed-bnc-male-bnc-female-2-watts-attenuator-pe7049-3-p.aspx
