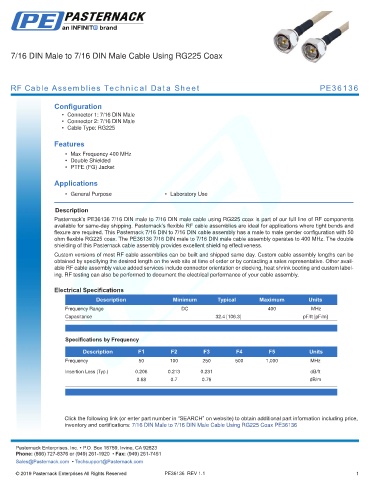

7/16 DIN Male to 7/16 DIN Male Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE36136

Configuration
• Connector 1: 7/16 DIN Male
• Connector 2: 7/16 DIN Male
• Cable Type: RG225

Features
• Max Frequency 400 MHz
• Double Shielded
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE36136 7/16 DIN male to 7/16 DIN male cable using RG225 coax is part of our full line of RF components
available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and
flexure are required. This Pasternack 7/16 DIN to 7/16 DIN cable assembly has a male to male gender configuration with 50
ohm flexible RG225 coax. The PE36136 7/16 DIN male to 7/16 DIN male cable assembly operates to 400 MHz. The double
shielding of this Pasternack cable assembly provides excellent shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 400 MHz
Capacitance 32.4 [106.3] pF/ft [pF/m]
.
Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
Insertion Loss (Typ.) 0.206 0.213 0.231 dB/ft
0.68 0.7 0.76 dB/m
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Cable Using RG225 Coax PE36136
-
