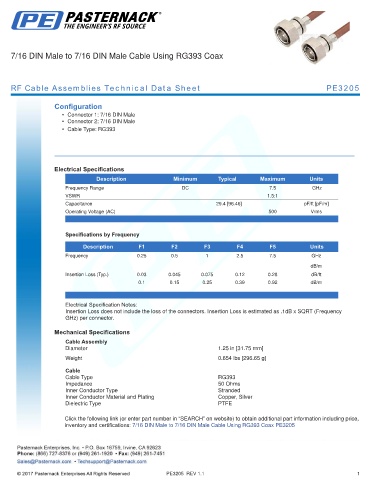

7/16 DIN Male to 7/16 DIN Male Cable Using RG393 Coax

RF Cable Assemblies Technical Data Sheet PE3205

Configuration
• Connector 1: 7/16 DIN Male
• Connector 2: 7/16 DIN Male
• Cable Type: RG393

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 7.5 GHz
VSWR 1.5:1
Capacitance 29.4 [96.46] pF/ft [pF/m]
Operating Voltage (AC) 500 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.25 0.5 1 2.5 7.5 GHz
dB/m
Insertion Loss (Typ.) 0.03 0.045 0.075 0.12 0.28 dB/ft
0.1 0.15 0.25 0.39 0.92 dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as .1dB x SQRT (Frequency
GHz) per connector.

Mechanical Specifications
Cable Assembly
Diameter 1.25 in [31.75 mm]
.
Weight 0.654 lbs [296.65 g]

Cable
Cable Type RG393
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Cable Using RG393 Coax PE3205

PE3205 REV 1.1 1
