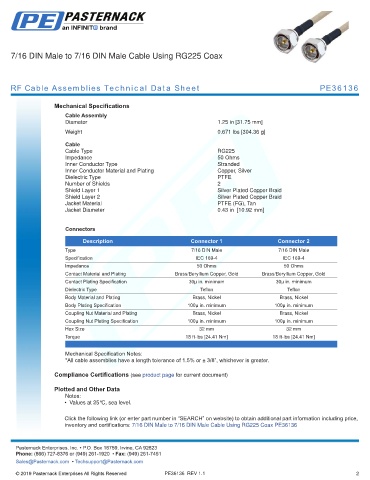

7/16 DIN Male to 7/16 DIN Male Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE36136

Mechanical Specifications
Cable Assembly
Diameter 1.25 in [31.75 mm]
.
Weight 0.671 lbs [304.36 g]
Cable
Cable Type RG225
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material PTFE (FG), Tan
Jacket Diameter 0.43 in [10.92 mm]
.
Connectors

Description Connector 1 Connector 2
Type 7/16 DIN Male 7/16 DIN Male
Specification IEC 169-4 IEC 169-4
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass/Beryllium Copper, Gold Brass/Beryllium Copper, Gold
Contact Plating Specification 30µ in. minimum 30µ in. minimum
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Nickel Brass, Nickel
Body Plating Specification 100µ in. minimum 100µ in. minimum
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum 100µ in. minimum
Hex Size 32 mm 32 mm
Torque 18 ft-lbs [24.41 Nm] 18 ft-lbs [24.41 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 7/16 DIN Male to 7/16 DIN Male Cable Using RG225 Coax PE36136
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE36136 REV 1.1 2
