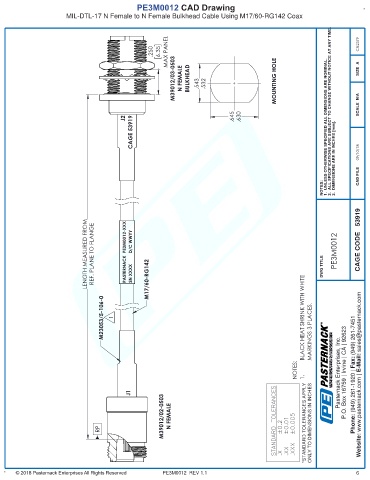

PE3M0012 CAD Drawing
MIL-DTL-17 N Female to N Female Bulkhead Cable Using M17/60-RG142 Coax

      
      SIZE A

 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 
   2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOU T NOTICE AT ANY TIME. SCALE N/A

NOTES: CAD FILE

         DWG TITLE  CAGE CODE 53919

    R sales@pasternack.com

P.O. Box 16759 | Irvine | CA | 92623

Pasternack Enterprises, Inc.

 Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 E-Mail:


   Website: www.pasternack.com |




 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3M0012 REV 1.1 6
