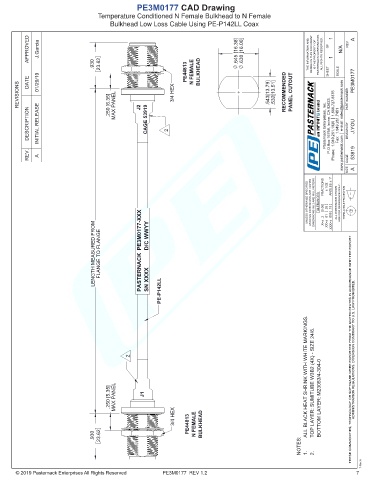

PE3M0177 CAD Drawing
Temperature Conditioned N Female Bulkhead to N Female
Bulkhead Low Loss Cable Using PE-P142LL Coax

APPROVED J.Garcia .645 [16.38] .630 [16.00] THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV A

.930 23.62 PE44813 N FEMALE BULKHEAD SHEET OF 1 SCALE

REVISIONS DATE 01/29/19 .250 [6.35] MAX PANEL J2 3/4 HEX .543[13.79] .532[13.51] RECOMMENDED PANEL CUTOUT PART NUMBER PE3M0177

DESCRIPTION INITIAL RELEASE CAGE 53919 2 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY J.YOU

REV. A CAGE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM FLANGE TO FLANGE PE3M0177-XXX PASTERNACK D/C WWYY SN XXXX PE-P142LL

2 ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

.250 [5.35] MAX PANEL J1 TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 24/6. BOTTOM LAYER: M23053/4-304-0

3/4 HEX

PE44813 N FEMALE BULKHEAD -
23.62
Pasternack does not make
.930
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
NOTES: 1. 2.

T-Rev.A
PE3M0177 REV 1.2 7
